Maglev ORC Systems
Recover low-grade heat conventional steam systems cannot use.
Oil-free integrated ORC turbine-generator systems for hot water, low-pressure steam, geothermal water and process waste heat.
A short parameter set is enough for an initial route check: medium, temperature, pressure, flow and operating hours.
Best Fit
Use this route when the plant has steady low-grade heat that needs a practical power outlet.
- Hot water, condensate or low-pressure steam is available for long operating hours.
- The source is below the range where a conventional steam cycle is practical.
- The project needs a compact, oil-free turbine-generator route matched to site conditions.
Fast Assessment
Send four inputs to start the review.
- Source medium and composition
- Temperature and pressure range
- Flow or throughput estimate
- Operating hours and cooling conditions
Typical next step
Send the parameters first, then we can confirm whether ORC is the most suitable route before detailed file exchange.
If the source is still being defined, send the best available range first and we can confirm the next data set required.
Engineering Fit
Designed around the source, site and operating target.
Boomtec combines turbine-generator integration, high-speed permanent-magnet generation, active magnetic bearings and configurable ORC plant layouts. Cooling routes and working-fluid selection are evaluated against the plant environment and heat-source profile.

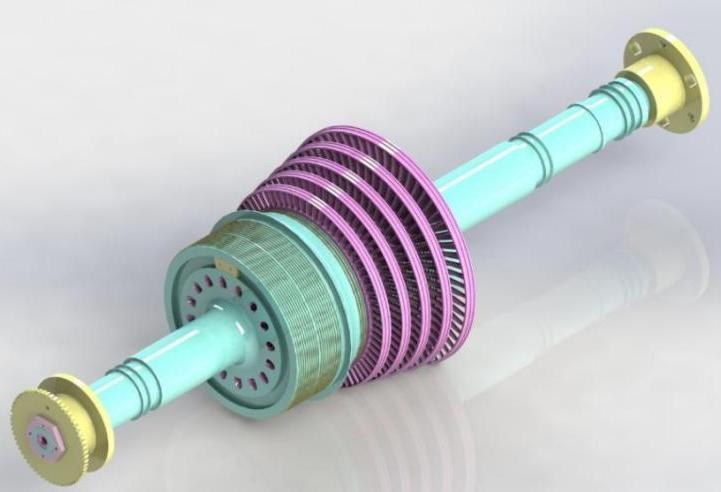

Integrated Maglev ORC
Compact, oil-free turbine-generator configuration for lower-power industrial heat-recovery applications.
- Active magnetic bearings
- High-speed permanent-magnet generator
- 100-1,500 kW reference range per unit
Split-Type Axial ORC
Separate axial-flow configuration for larger heat-source flows and utility-scale recovery routes.
- Geothermal water, process heat and hot-water applications
- 1.5-10 MW reference range per unit
- Arrangement evaluated for source and site constraints
Inputs That Shape the Route
Configuration begins with the actual source and cooling boundary, not a generic output promise.
- Medium, composition, temperature, pressure and flow
- Operating hours and load variation
- Cooling conditions and site interfaces
ORC Technical Data
Review the product range, typical source parameters and selectable configurations.
If the source parameters are ready, send them first so we can confirm whether a maglev ORC route is suitable before detailed document exchange.
